ST-1B Mono Class AB Amplifier

Productomschrijving

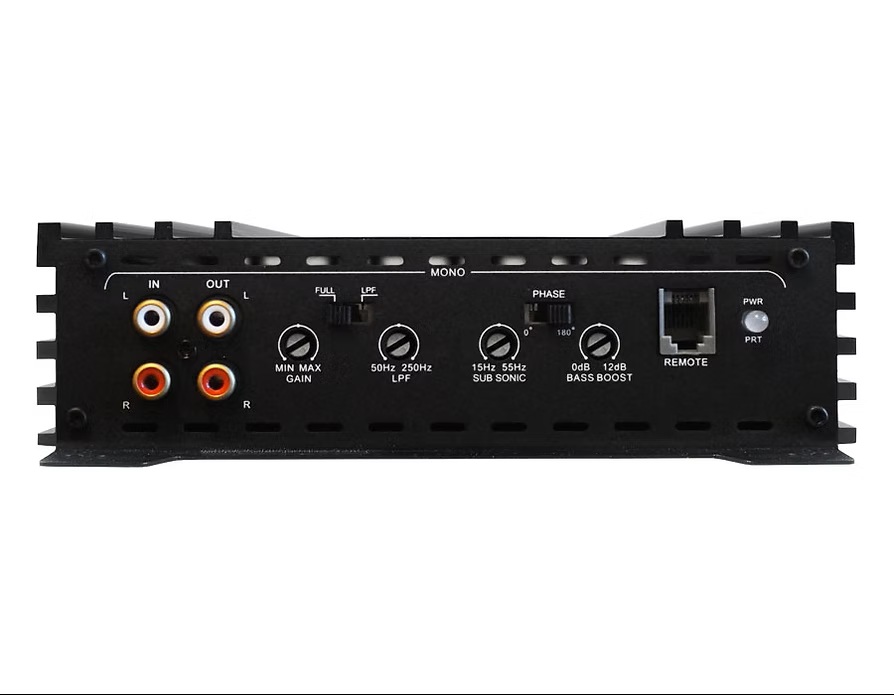

Features and Functions
- Mono Class-AB Amplifier
- MOSFET power supply
- RCA input and output
- Variable Inputs Gain Control
- Variable LP Electronic Crossover
- Variable Bass Boost
- Phase 0-180°
- Subsonic filter

Technical Specifications
- Power @ 4Ω: 200 watts
- Power @ 2Ω: 300 watts
- THD @ Rated Power < 0.2%
- Signal to Noise Ratio > 90dB
- Frequency Response 15Hz to 30KHz ±1dB
- Input Sensitivity .25v to 5v
- Net Dimensions (mm): 182(W) x 52(H) x 280(L)
- Overall Dimensions (mm): 182(W) x 52(H) x 310(L)
