HB 154D II 4-Ch. Class D Amplifier

Productomschrijving

Features and Functions
- 4-Channel, Full Range, Class D

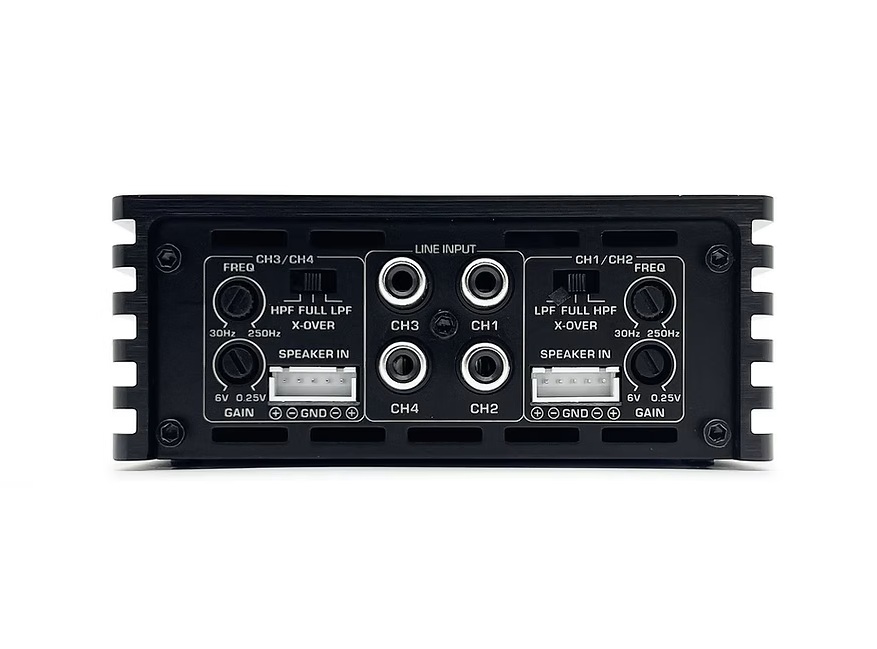

- RCA and Speaker Level inputs
- Variable input gain control
- Variable electronic crossover

Technical Specification
- Power @ 4Ω: 4 x 150 watts RMS
- THD @ Rated Power < 0.5%THD
- Power @ 2Ω: 4 x 200 watts RMS
- Power Bridged @ 4Ω: 2 x 350 W RMS
- Signal to Noise Ratio > 90dB
- THD + Noise < 0.1%
- Frequency Response 20Hz to 20KHz ±1dB
- Input Sensitivity .25v to 6v (Low)
- Dimensions (mm): 180 (L) x 115 (W) x 45.5 (H)
