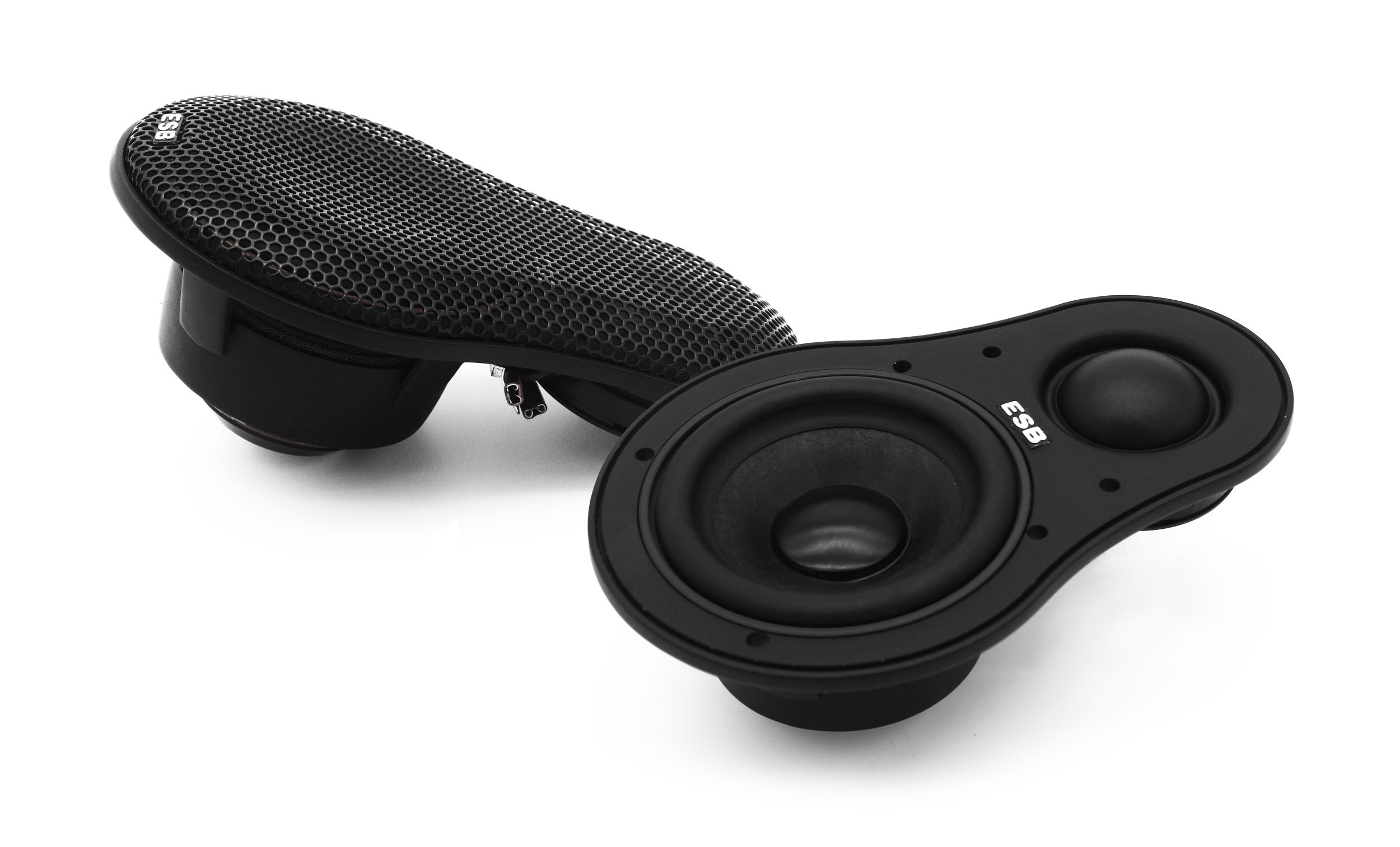

3.UMA 2-Way Mid-High Unit

Productomschrijving

Technical Specifications
- Nominal Impedance: 4 Ohm
- Nominal Power: 60 (mid), 80 (tw) W
- Transient Power: 120 (mid), 160 (tw) W
- Frequency Response: 130 Hz ~ 25 KHz
- Sensitivity: 86 (mid), 91 (tw) dB 2.83v/1m

Main Features
- This special and exclusive component driver is a concept conceived way back in 1970’s. Its aim is to concentrate medium and tweeter emissions in a single virtual point. This minimizes phase delays and irregularities at the crossover point.
- The neodymium magnet is high grade type to eliminate magnetic losses at elevated temperatures and to concentrate more force in less space.
- The tweeter has a silk-impregnated, thin fabric dome diaphragm for a smooth sound, with an outer suspension covered with a high-loss damping material to eliminate edge vibration and resonance.
- Pressed paper cone with waterproof treatment (midrange) for the ideal marriage between lightness, stiffness and the ability of the cone to dampen any unwanted vibration.
- The voice coil uses an aluminum support and a double layer winding technology of copper wire with an aluminum core.
