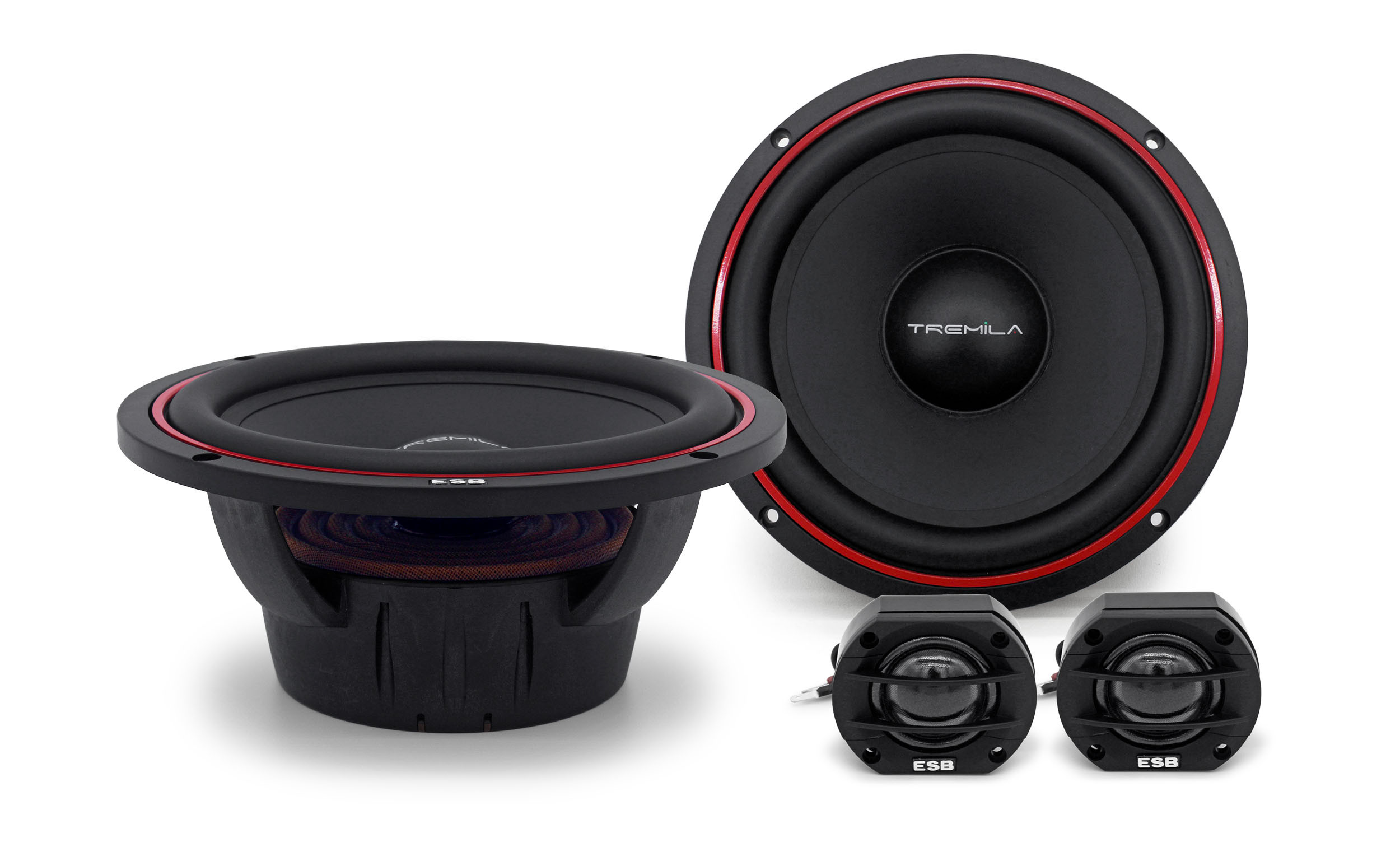

3.6K2 2-Way Speaker System with 1.1″/28 mm Tweeter

Productomschrijving

3.28 dome tweeter

Technical Specifications
- Nominal Impedance: 4 Ohm
- Nominal Power Handling: 90 Watt
- Transient Power: 180 Watt
- Frequency Response: 900 Hz ~ 25 KHz
- Sensitivity: 94 dB 2.83v/1m

3.165 mid woofer

Technical Specifications
- Nominal Impedance: 4 Ohm
- Nominal Power Handling: 120 Watt
- Transient Power: 240 Watt
- Frequency Response: 65 Hz ~ 9 KHz
- Sensitivity: 91.5 dB 2.83v/1m

optioneel bij te bestellen , een passief crossover .

3.6k2 cx passive crossover

Technical Specifications
- Cut out Frequency: 3 KHz
- Crossover Slope: 6 dB/Oct LP, 12 dB/Oct HP
- 4-step tweeter level adjustment
- Low Frequency section: 3.165
- High Frequency section: 3.28

- Dedicated for 3.28 tweeter and 3.165 woofer.
- High thickness PCB copper.
- Inside 4 step tweeter level adjustment.
- Oversize not inductive ceramic resistors.
- Polyester tweeter capacitor.
- Asymmetrical cutting slope.
- In air tweeter inductor.
